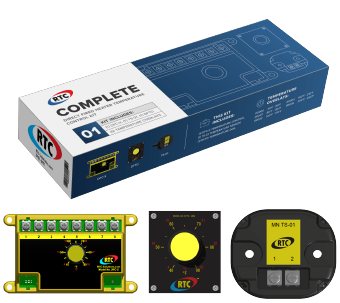

DF01-DPK: Complete Direct Fired Temperature Control Kit

DF01-DPK Attributes

Overview

• DFC-X: Direct Fired Temperature Control with Integral Setpoint and   Optional Remote Setpoint Selection
   •24V AC Input
   •Remote Dial Auto Detection
   •Built in 10 Second Low Fire Start Timer
• DFTD: Direct Fired Temperature Selection Dial
   •5 Selectable Temperature Ranges with One Dial
     o 40ºF-90ºF (4ºC-32ºC)
     o 80ºF-130ºF (26ºC-54ºC)
     o 120ºF-170ºF (48ºC-76ºC)
     o 160ºF-210ºF (71ºC-90ºC)
     o 200ºF-250ºF (93ºC-121ºC)
   •Mounting Footprint Matches other Industry Standard Controls
• TS01: Temperature Sensor
   • 40ºF-250ºF (4ºC-121ºC) temperature range
   • Fits ¼” wiring terminals
   • Mounting footprint matches other industry standard controls

Data Sheet	User's Manual

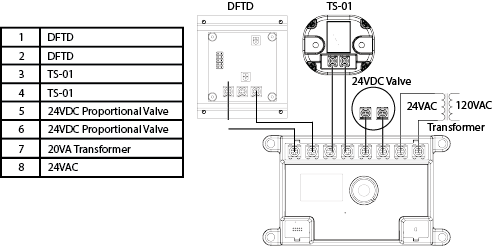

Schematic	Video
