DF01-DPK: Complete Direct Fired Temperature Control Kit

• DFC-X: Direct Fired Temperature Control with Integral Setpoint and   Optional Remote Setpoint Selection
   •24V AC Input
   •Remote Dial Auto Detection
   •Built in 10 Second Low Fire Start Timer
• DFTD: Direct Fired Temperature Selection Dial
   •5 Selectable Temperature Ranges with One Dial
   •Mounting Footprint Matches other Industry Standard Controls
• TS01: Temperature Sensor
   • 40ºF-250ºF (4ºC-121ºC) temperature range
   • Fits ¼” wiring terminals
   • Mounting footprint matches other industry standard controls

FSC-1: EC Motor Control

• Programmable high speed and low speed limits
• RPM feedback
• Option to use remote potentiometer, 2 speed switch or 0-10V source

FSC-RD: FSC Remote Dial

• 2 Speed Functionality
• Variable Speed Functionality
• Easy Wiring with Push Fit Wire Terminals

DFC+: Integrated Digital Gas Fired Heating Control with Freeze & Outside Air Thermostat

• Compatible with RDU+
• Freeze stat with delay timer
• Automatic outside air thermostat

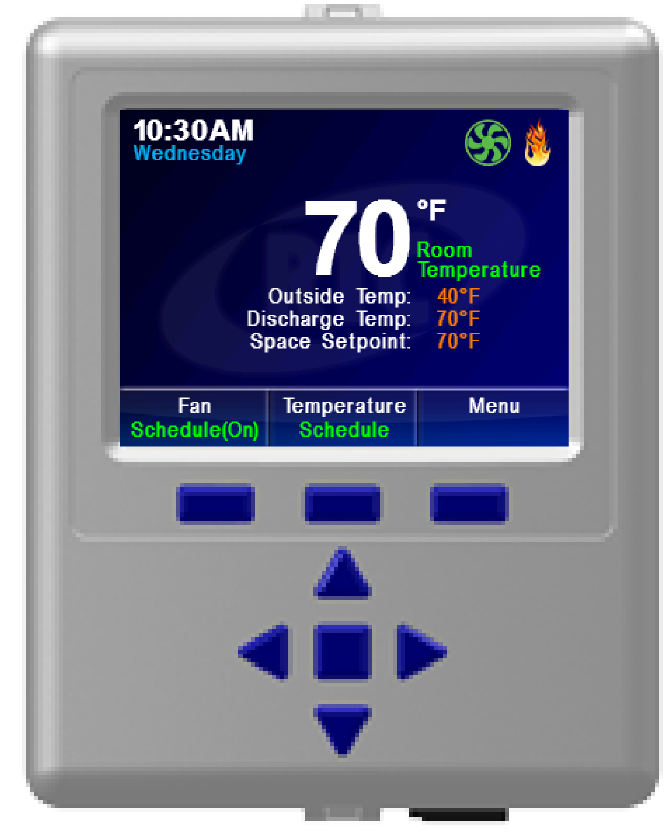

RDU+: Enhanced Digital Color LCD Remote Display Unit for DFC+

• Replaces traditional remote panels via full color graphic LCD display
• Easy menu navigation using soft key touch
• Customizable weekly schedule and diagnostic screen

DFC: Digital Enhanced Gas Fired Modulating Control

• LED display and push button interface
• Settable temperature limits
• Push on wiring terminal

RDU: Digital Remote Space Set-point Control for Gas Fired Heating Application

• Digital display provides discharge and space control in one product
• Simple interface
• All parameters can be accessed through the User Menu

DFC-X : Direct Fired Temperature Control with Integral Setpoint and Optional Remote Setpoint Selection

(Direct Replacement for DFC-1 and DFC-2)

• 24 Volt AC input
• Built in 10 second low fire start timer
• 0-24 Volt DC modulating output
• Option for remote temperature selection or integral temperature selection
• Remote Dial Auto Detection
• Mounting footprint matches other industry standard controls
• Fits ¼” wiring terminals
• Maintenance Mode
• Rating -40ºF (-40ºC)

DFC-1 : Direct Fired Standard Temperature Control

• 24 Volt AC input
• Built in 10 second low fire start timer
• 0-24 Volt DC modulating output
• Remote temperature selection
• Mounting footprint matches other industry standard controls
• Fits ¼” wiring terminals
• Calibration trim pot
• Rating -40ºF (-40ºC)

DFC-2: Direct Fired Temperature Control with Integral 40ºF - 90ºF Selector

• 24 Volt AC input
• Built in 10 second low fire start timer
• 0-24 Volt DC modulating output
• Remote temperature selection
• Mounting footprint matches other industry standard controls
• Fits ¼” wiring terminals
• Calibration trim pot
• Rating -40ºF (-40ºC)

SC-1: Signal Conditioner

• Provides signal conversion from a high impedance 2-10V DC signal source to drive a 24VDC solenoid
• The control should be powered by an isolated 24VAC transformer to drive up to a .5A DC solenoid
• 2 Modes of operation – valve output control mode (default) and discharge limit control mode

SCEBM-2: Digital Signal Conditioner For Combustion Air Burners

• Programmable parameters with a simple 5 button interface and four digit LED Display
• One temperature sensor input to provide a discharge temperature
• One relay output switch
• One 2-10V DC input
• One Modulation output that will power a 24V DC ECM

TS01: Temperature Sensor

• 40ºF-250ºF (4ºC-121ºC) temperature range
• Fits ¼” wiring terminals
• Mounting footprint matches other industry standard controls

DFTD: Direct Fired Temperature Selection Dial

• 5 Selectable temperature ranges with one dial
   o 40ºF-90ºF (4ºC-32ºC)
   o 80ºF-130ºF (26ºC-54ºC)
   o 120ºF-170ºF (48ºC-76ºC)
   o 160ºF-210ºF (71ºC-90ºC)
   o 200ºF-250ºF (93ºC-121ºC)
• Mounting footprint matches other industry standard controls

DAT: Discharge Air Tube

• Size 8.5”
• Size 12”
